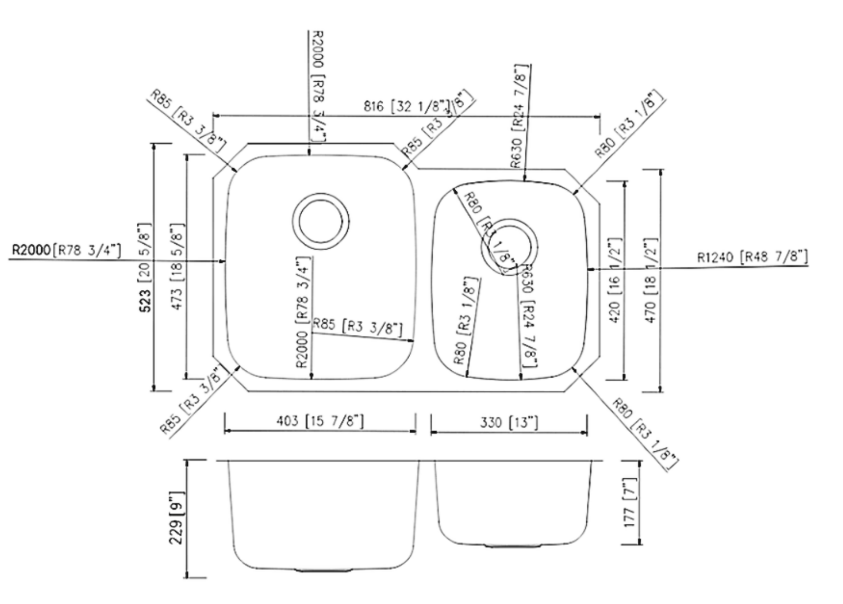

PL-VS6040 Signature Series Stainless Steel Sink

Features:

• Double Bowl
• Fitted Sound Deadening Pads
• Rounded Corners for Easy Cleaning

Material:

• 16-Gauge Stainless Steel
• 18-Gauge Stainless Steel

Installation:

• Undermount

Codes/Standards :

• ASME A112.19.3/CSA B45.4

Technical Information:

All product dimensions are nominal

• Exterior Measurements: 32 1/8" x 20 5/8" x 9"
• Left Bowl : 15 7/8" x 18 5/8" x 9"
• Right Bowl: 13" x 16 1/2" x 7"
• Bowl Configuration: Double

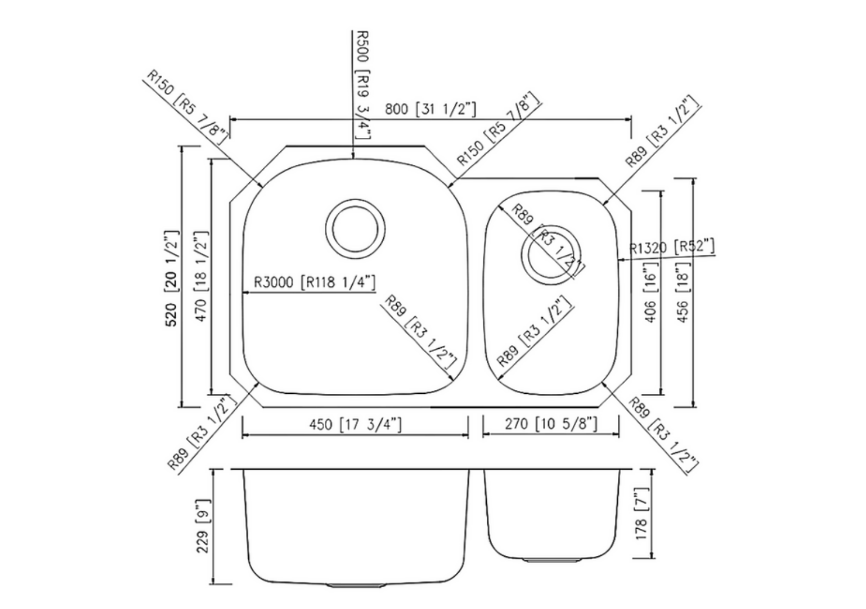

PL-VS7030 Signature Series Stainless Steel Sink

Features:

• Double Bowl
• Fitted Sound Deadening Pads
• Rounded Corners for Easy Cleaning

Material:

• 16-Gauge Stainless Steel
• 18-Gauge Stainless Steel

Installation:

• Undermount

Codes/Standards :

• ASME A112.19.3/CSA B45.4

Technical Information:

All product dimensions are nominal

• Exterior Measurements: 31 1/2" x 20 1/2" x 9"
• Left Bowl : 17 3/4" x 18 1/2" x 9"
• Right Bowl: 10 5/8" x 16" x 7"
• Bowl Configuration: Double

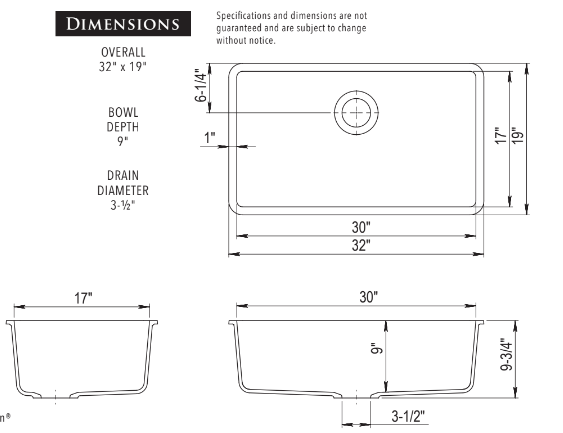

Lexicon Quartz Large Single Bowl

Features:

• Made from 80% quartz, only diamond is harder
• Durable; highly resistant to scratches and stains
• Non-porous surface, easy-to-clean
• Extremely hygienic, does not absorb bacteria
• Heat resistant to +500°F
• True undermount design, can also be topmounted
• PerfectFit drains for easy cleaning

Standards:

• Complies with ANSI Z124.6-2007
• Complies with EN 13310:2003

Included Accessories:

• Sink Grid
• Color Matched Strainer Basket
• Color Matched Disposal Flange

Dimension:

• Overall: 32" x 19"
• Bowl Depth: 9"
• Drain Diameter: 3 1/2"

Also Available in Additional sizes: 50/50, 60/40, and 70/30

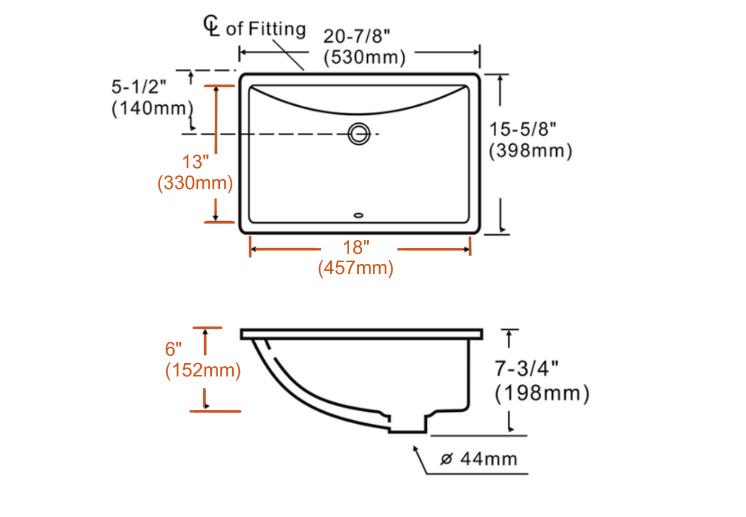

PL-3099 Pearl Series Porcelain Sink

Features:

• Rectangular Basin
• Overflow Drain
• Nonporous - Hygienic

Material:

• Vitreous China

Installation:

• Undermount

Technical Information:

All product dimensions are nominal

• Interior Measurements: 18" x 13 x 6"
• Exterior Measurement : 20 7/8" x 15 5/8" x 7 3/4"
• Bowl Configuration: Single
• Finish: Vitreous China

Also Available in Undersized

PL-3059 Pearl Series Porcelain Sink

Features:

• Circular Basin
• Overflow Drain
• Nonporous - Hygienic

Material:

• Vitreous China

Installation:

• Undermount

Technical Information:

All product dimensions are nominal

• Interior Measurements: 17 1/4" x 14" x 5 3/4"
• Exterior Measurement : 19" x 15 3/4" x 7 3/4"
• Bowl Configuration: Single
• Finish: Vitreous China

Also Available in Undersized
